AL8805W5-7
Manufacturer:
Diodes Incorporated
Mfr.Part #:
AL8805W5-7
Datasheet:
Description:

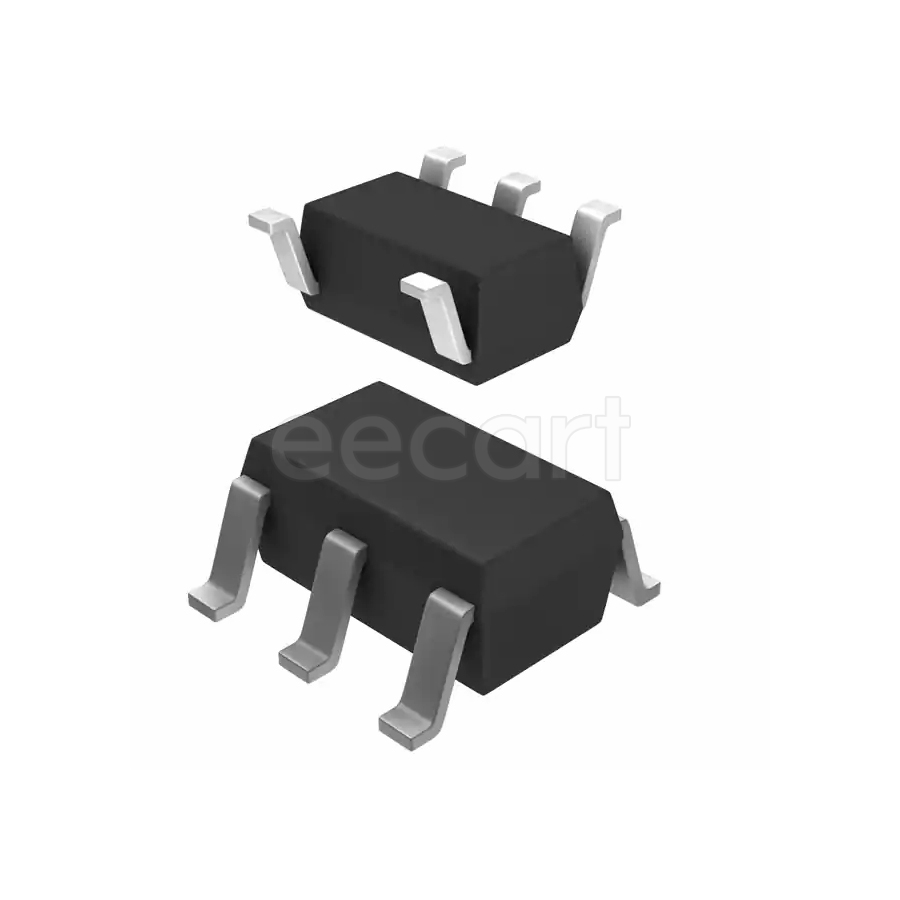

LED Drivers SOT-25 SMD/SMT Analog, PWM 1 A
| Parameter | Value |
|---|---|
| Length | 3 mm |
| Width | 1.6 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 5 |
| Height | 1.1 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Frequency | 1 MHz |
| Min Input Voltage | 6 V |
| Output Current | 1 A |
| Output Voltage | 30 V |
| Max Supply Voltage | 30 V |
| Min Supply Voltage | 6 V |
| Number of Channels | 1 |
| Max Supply Current | 1 A |
| Switching Frequency | 1 MHz |
| Max Input Voltage | 36 V |
| Number of Outputs | 1 |
| Dimming | Analog, PWM |
| Nominal Supply Current | 5 µA |
| Output Current per Channel | 1 A |
| Number of Segments | 8 |
| RoHS | Compliant |
| Topology | Step-Down (Buck) |
| Packaging | Reel |
| Internal Switch | Yes |
| Type | DC DC Regulator |
